product: TH-type bucket elevator
product information:

I. Overview

& nbsp; TH-hoist with a transport capacity, high hoisting height, stable and reliable operation, long life notable features. Its main properties and parameters meet JB3926-85 "vertical bucket elevator" standard. Traction ring chain conform GB / T12718-91 "mining high-intensity ring chain." TH-type bucket elevator used to transport high temperature materials. For conveying powder, granular and small block of non-abrasive, semi-abrasive materials such as coal, cement, sand, clay and ore.


& nbsp; TH-type bucket elevator is widely used in various industrial sectors, such as building materials, electricity, chemical, metallurgy, coal, light industry, food and other industries.

Performance Features

& nbsp; transport capacity, compared with the same type of model HL throughput increases nearly doubled;

& nbsp; easy to replace and cost savings. Due to the use of the assembled sprocket wheel rim joined together with high strength bolts. When the sprocket wear to a certain extent, you can unscrew the bolts, removable rim, easy to replace. Thereby reducing maintenance costs.

& Nbsp; low noise, in line with current environmental requirements, with a ZLY gear reducer, the reducer is based on the standard production of new ZBJ19004-88 Hardened reducer, gear carburizing, quenching tooth grinding and other processes refined, with a small size, light weight, high load capacity, long life, high efficiency, low noise and so on.

& Nbsp; gear installed backstop, effectively prevent the "pouring" occurs.

& Nbsp; traction parts for the manufacture of high-strength low-alloy steel ring chain, after reasonable heat treatment, with high tensile strength, abrasion resistance, and long life.

& Nbsp; TH-ring chain bucket elevator has two hoppers: ZH (deep bucket) generally applies to the transport wet, easy caking, throws harder materials, such as wet sand, sand fertilizers, base powder. SH type (deep bucket) for conveying dry, easily thrown loose materials, such as cement, clinker, gravel, coal, etc., its pumping capacity larger than the type ZH.

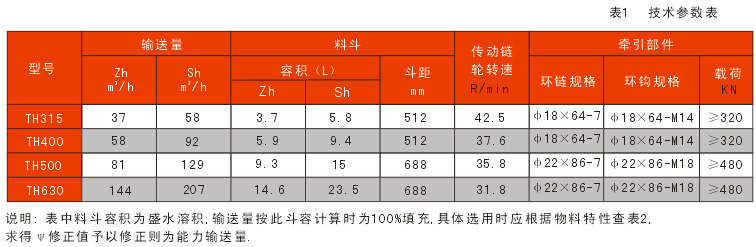

Third, the technical parameters

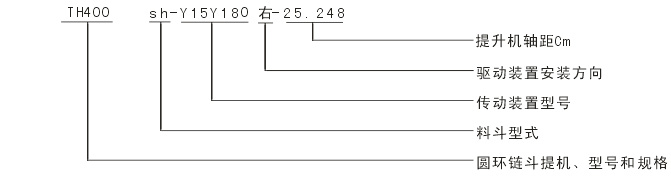

four, Mark example

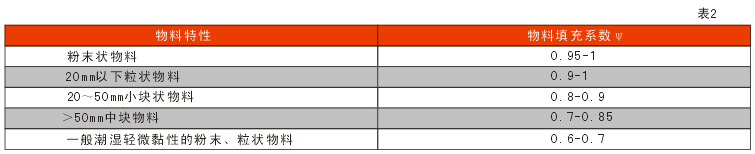

V, the fill factor of the hopper table

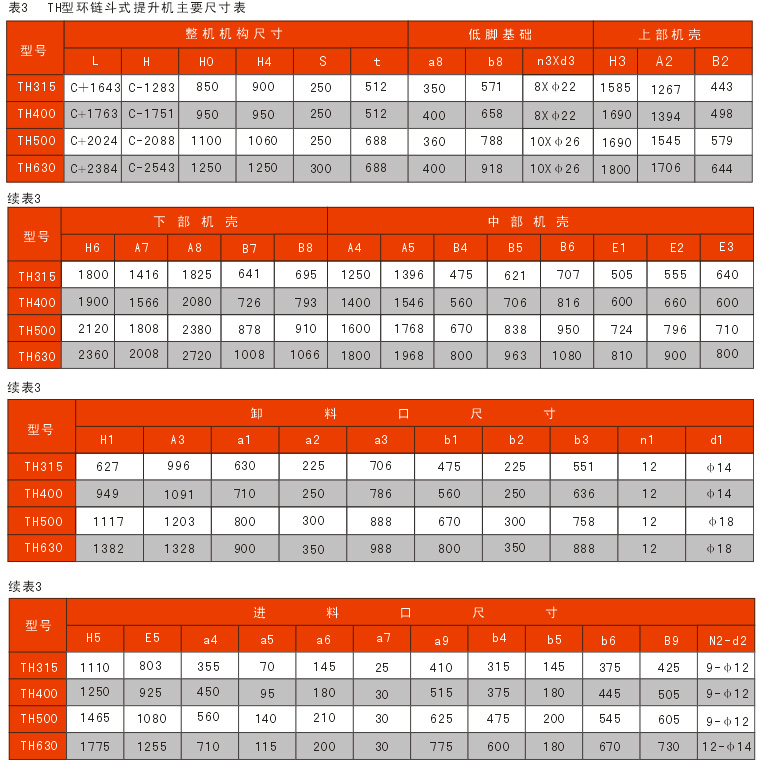

six, TH-type bucket elevator looks like figure and main dimensions table
